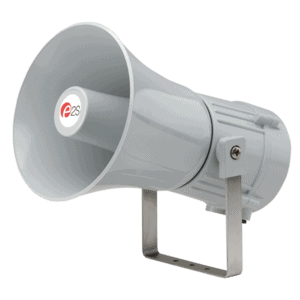

MA121 very high output, up to 126db@1m Alarm Sounder 10-30vdc

SIRENS & INDUSTRIAL AIR HORNS FOR ON-SITE, ALERTS & SPORTING GROUNDS.

MA121 very high output, up to 126db@1m Alarm Sounder 10-30vdc

Heavy industrial Marine Grade signals

E2s MA121 Robust, fire retardant, IP66 & IP67

45 Tone Electronic Sounder

Sound Output Maximum output: 126dB(A) @ 1 metre

Tones 45

Ingress protection IP66 & IP67 (Third party tested)

DC Voltages available 24V dc (10-30Vdc) 48V dc (42-54V)dc

AC Voltages available 115V ac 230V ac 50/60Hz 24V ac 50/60Hz

Origin UK

Features & Applications

Features

Automatic synchronisation on multi-sounder system*
Continuously rated.
Large termination area.
Stainless steel fixings.
Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
Duplicate cable terminations (in & out for daisy-chain installations).
Tropicalisation available on request.
Available with custom tone configurations and frequencies.
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to any stage

Technical Specifications

Sound output 126dB(A) @ 1 metre [117dB(A) @ 10ft/3m]

Rating Continuous

Protection IP66 & IP67

Construction High impact UL94 V0 & 5VA FR ABS

Operating temp -25 to +55°C [-13° to +131°F]

Weight DC: 2.50kg/5.5Ibs
AC:3.00kg/6.6Ibs

Voltages 24V ac; 115V ac; 230V ac
DC: 24V dc (10-30V dc);
48V dc (35-60V dc)
[DC units can use 24V ac for single stage
applications.]

Synchronisation* *Only occurs when sounders are connected to the same power supply

Current consumption Current:
24V dc 10-30V dc 950mA*
48V dc 35-60V dc 600mA*
24V ac 50/60Hz +/-10% 1000mA
115V ac 50/60Hz +/-10% 240mA
230V ac 50/60Hz +/-10% 120mA
* current at nominal voltage on Tone 2

E2s MA121F Alarm Horn Sounder
